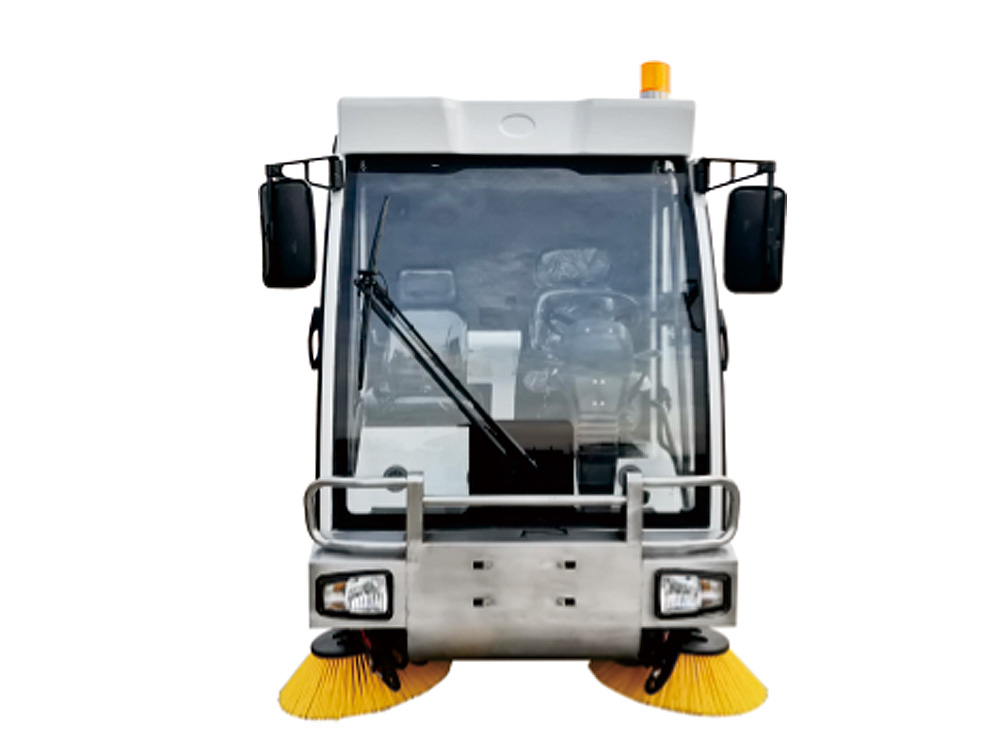

Ruiqing S21L pure electric road sweeper is mainly used for cleaning and cleaning of municipal roads such as main roads, auxiliary roads and non motorized lanes. It can quickly clean fallen leaves, stones, sand dust and white garbage. It combines spraying, cleaning and dust collection to dump garbage automatically, with good effect and high efficiency.

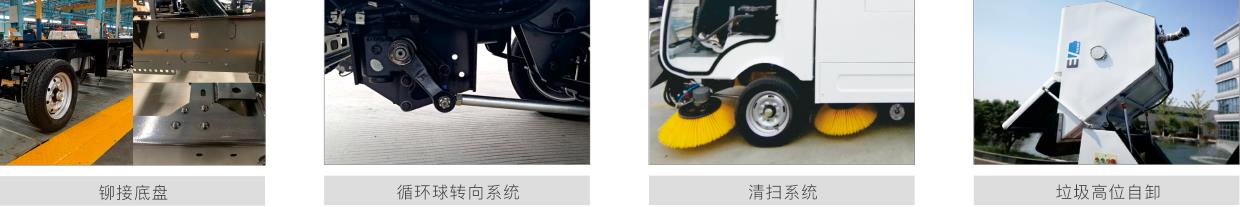

Chassis: the overall riveted chassis of the vertical and horizontal beams of the frame is made of automobile girder steel, with high strength, strong bearing capacity, electrophoretic antirust treatment and corrosion resistance;
Body: fully enclosed cab, transparent glass on three sides, high-quality and high-strength metal body, good line of sight and beautiful appearance;
Main brush cleaning system: the motor directly drives the main brush, without transmission loss, stable performance and longer operation time;
Garbage conveying system: brushless motor synchronous chain conveying;
Garbage dumping mode: high-level hydraulic dump;
Motor: all motors adopt brushless motor with stable performance;
Seat: cushion seat, with gravity sensing device, strong safety;
Steering system: recirculating ball electric power steering system.
| Parameters | Ruiqing S21L |
| work efficiency | ≥20000㎡/h |
| Main brush width | 750mm |
| Side brush diameter | 650mm*4 |
| Continuous working time | ＞7h |
| Range | ≥100km |
| Maximum driving speed | 35 km/h |
| Climbing ability | ≥30% |
| Dustbin capacity | 1400L（High level dump） |
| Water tank capacity | 365L |
| Voltage / drive power | 72V/7.5kw |
| Turning radius | ≤5000mm |
| Overall dimension | 4370*2100*2220mm |
| curb weight | 2340KG |
